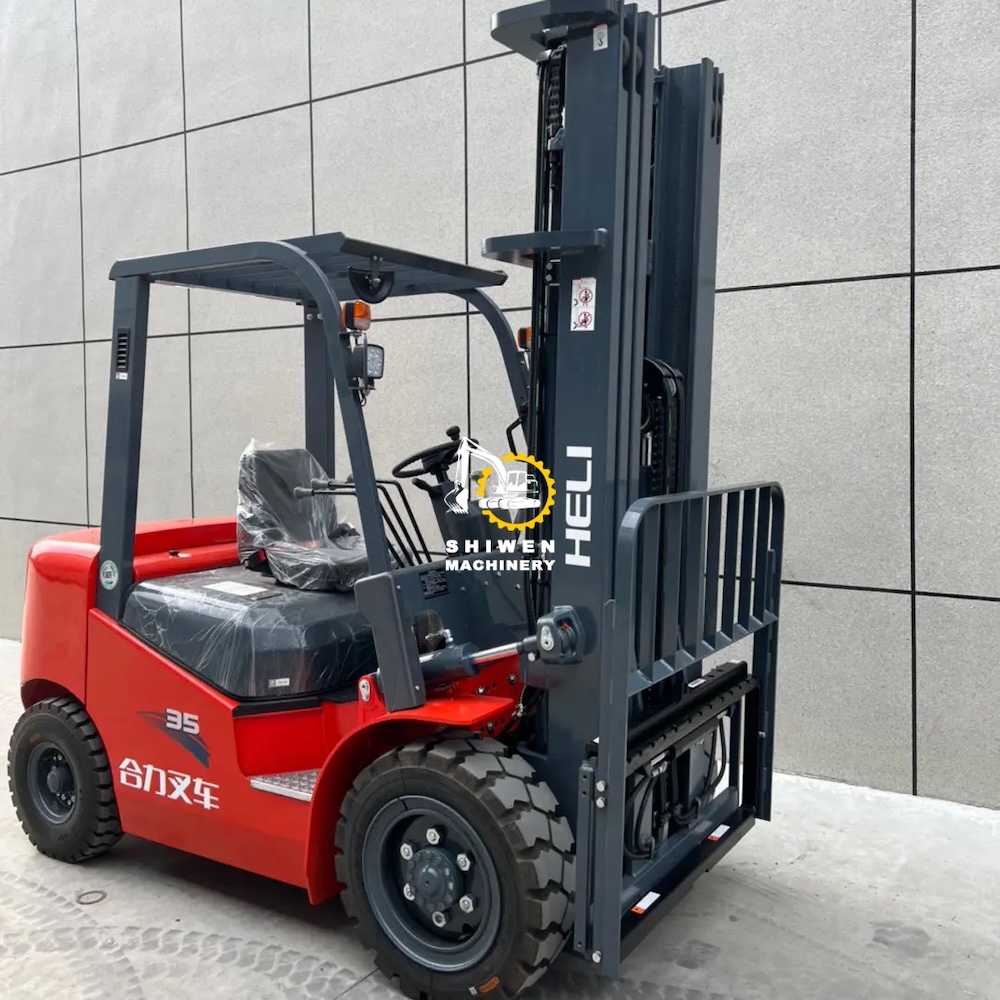

NEW HELI A35 CPC35 3.5ton diesel forklift

Description About Us Logistics & Stock

Description

HELI CPC35 A35 Diesel forklift Specification / Especificaciones de la carretilla elevadora diésel HELI CPC35 A35

Dimensions

Heli CPC35 Forklift Dimensions specifications
Ground Clearance	5.40 in (13.72 cm)
Height to Top of Overhead Guard	6.90 ft (2.10 m)
Length to Fork Face	8.90 ft (2.71 m)
Max Fork Height	9.90 ft (3.02 m)
Overall Height - mast lowered	7.20 ft (2.19 m)
Overall Width	4.10 ft (1.25 m)
Right Angle Stack	7.00 ft (2.13 m)
Turning Radius	8.00 ft (2.44 m)
Wheelbase	5.60 ft (1.71 m)

Engine

Heli CPC35 Forklift Engine specifications
Engine Model	4JG2
Fuel Type	diesel
Power	60.30 hp (44.97 kw)
Power Measured @	2450 rpm
Torque	137.50 lbs ft (186.42 nm)
Torque Measured @	1800 rpm

MAST

Heli CPC35 Forklift MAST specifications
Lift Speed	61.10 ft/min (18.62 m/min)
Load Capacity	7,716.20 lbs (3,500.01 kg)
Load Center	19.70 in (50.04 cm)
Mast Tip Forward	6 degrees
Mast Tip Rear	12 degrees
Max Fork Spread	40.20 in (102.11 cm)

Operating Specifications

Heli CPC35 Forklift Operating Specifications specifications
Max Speed	11.90 mph (19.15 kph)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	10,802.70 lbs (4,900.03 kg)
Tire Type	front 28x9-15 solid tire rear 6.50-10-10PR

About Us

Logistics & Stock

Packing Methods：
1. Flat rack is better for bigger construction equipment and no need to dismantle.
2. Container is cheapest and fast.
3. Bulk cargo ship is better for bigger construction equipment.
You can choose any transportation according to your needs

FAQ
Q1. Why can we trust you?
A1. Before ordering, you can send agent to inspect the machine and our company.

Q2. What guarantee can you provide?
A2. If there is any problem with the machine before shipping, you can get full refund.

Q3. What’s the payment?
A3. After your agent inspects the machine, pay 40% deposit.

Q4. What’s time of delivery?
A4. According to the destiny and shipping schedule, we will book the earliest ship.

Q5. What about the warranty?
A5. 12 months after shipping or within 3500 working hours.
